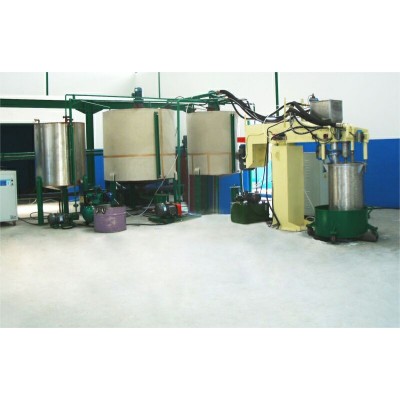

本设备主要适用于8-80kg/m3密度范围的软质聚氨脂泡绵生产，采用了大料搅拌全自动控制、灵活的人机界面控制系统，用户可以储存20种不同的发泡配方，也可以随时对配方进行调整或更改,可以生成出各种理想的家私绵、鞋材绵、胸围绵、电子绵，以及适应于包装、制衣和汽车工业用的各种泡绵。This equipment is mainly used in the 8-80kg/m3 range of density of soft polyurethane foam production, the aniseed stirring automatic control, flexible man-machine interface control system, the user can store 20 different foaming formula, can at any time to adjust or change the formula, can generate a variety of ideal furniture sponge, cotton shoes, bust cotton, cotton and to adapt to a variety of electronic, packaging, clothing and automobile industry with foam.

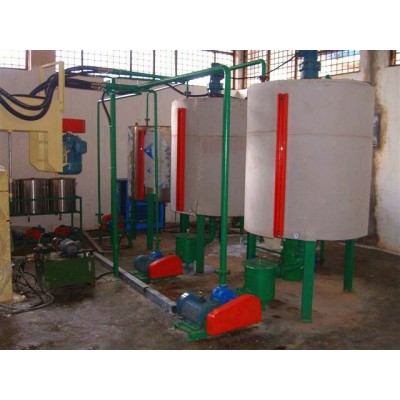

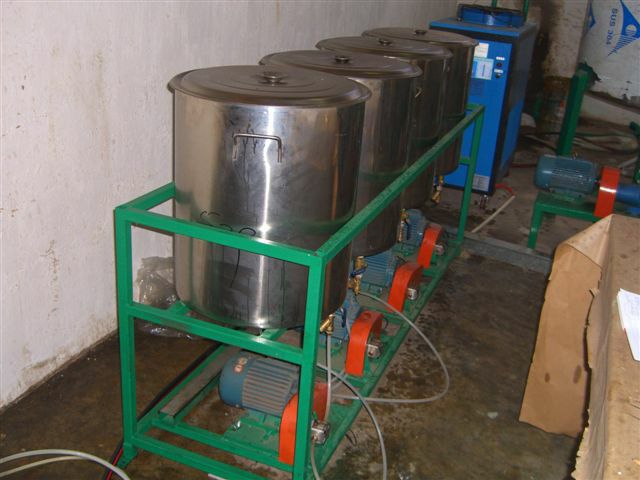

本机配置：三个大原料罐和四个大原料罐可根据客户要求定做,并有国产原料泵和美国VIKING泵两种配置可供选择The machine configuration: three large raw materials cans and four large raw materials can be customized according to customer requirements, and domestic raw materials pump and the United States VIKING pump two configurations available
主要技术参数Main technical parameters:
Mixing Tank Capacity: 搅拌容量: | 180L～250L 180升～250升 |
Mixer Total Power: 搅拌头总功率: | 15KW |
Mixing Speed: 搅拌速度: | 2800r～4200r/min 2800转～4200转/分钟 |
Save Formular Q.T.Y.: 可储存配方数量: | 20 Groups. 20组 |

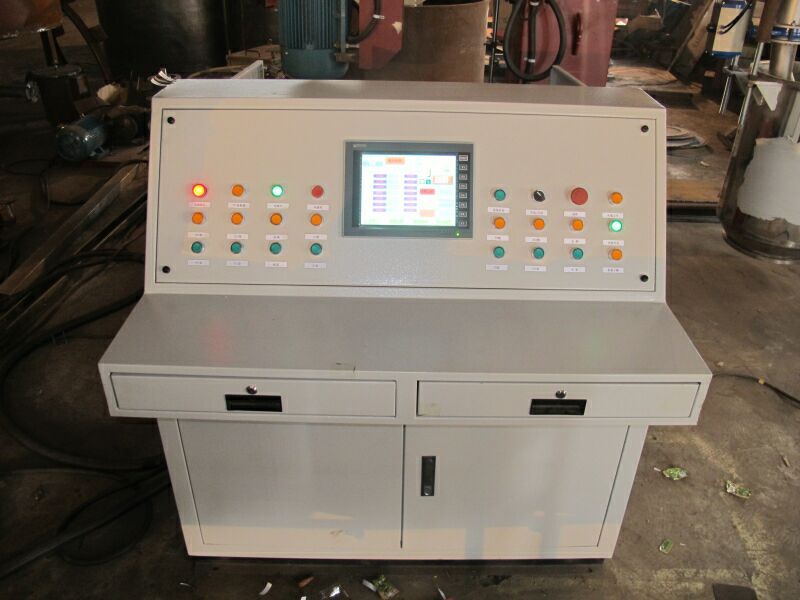

Control System: 控制系统: | PLC Touch Screen Control System PLC触摸屏控制系统 |
PPG Tank: PPG罐: | 3Ton*1Set. 3吨*1套 |
POP Tank: POP罐: | 3Ton*1Set. 3吨*1套 |
TDI Tank: TDI罐: | 2Ton*1Set. 2吨*1套 |
MC Tank: MC罐: | 1Ton*1Set. 1吨*1套 |
Air Valves: 气阀: | Euro Standard 欧标气阀 |
Auto Loading Pumps For PPG,POP,TDI,MC: 大料自动上料泵: | 4Sets(“Line”Brand Made In China) 4套( 国产莱恩品牌) |
Transducers: 减速机: | 4Sets 4套 |
Chiller(Both Cooling & Heating System): 冷热水一体机: | 1Set*15KW(Made In TaiWan) 1台*15KW(台湾品牌) |
Oil Hydraulic System: 油压系统: | 1Set 1套 |
Air Compressor: 空气压缩机: | 1Set*7.5KW 1套*7.5KW |
Electric Float Top System: 电动压模装置: | 1Set(Electric) 1套(电动) |
Auto Cleaning System: 自动冲洗装置: | 1Set 1套 |
Air Filtering System: 空气过滤系统: | 1Set. 1套 |
Water Tower: 水塔: | 1Set 1套 |
Water Pump: 水泵: | 1Set. 1套 |
Foaming Density Range: 发泡密度范围: | 8～50kg/Cubicmeter. 8～50kg/立方. |
Outputs: 产量: | 96 Blocks/per day/8hrs(480m3/day) 可生产泡绵96个/天/8小时(480立方/天) |
Match With One Square Mould: 配方模一套: | L2100mm*W2100mm*H1300mm(To Be Requested) L2100mm*W2100mm*H1300mm(可按客户要求尺寸定做) |
Match With One Cylinder Mould: 配圆模一套: | Dia1800mm*H2200mm(To Be Requested) ￠1800mm* H2200mm(可按客户要求尺寸定做) |
Total Motor Power: 机器总功率: | Approx 35KW. 约35KW. |
Machine N.W.: 机器总重量: | Approx 6Ton 约6吨 |
Floor Space Required: 占地尺寸: | L10m*W10m*H6m. |
备注：以上数据和参数仅供参考，实际技术以出厂产品为准！
