主要用途：

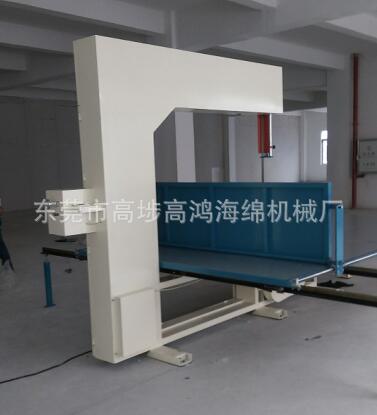

本机主要用于泡绵垂直切片及泡绵成型的切片工作。同时可加工各种纸类EVA及珍珠绵工作。最先采用直线导轨进行档板移动导向，定位更准，切绵效果更佳。
This machine is mostly used for foam rubber's upright slicing and moulded slicing work. This machine may synchronously manufacture all kinds of EVA and pearl rubber sections . The new developed baffle adopts beeline track both side, the movement of baffle will be steadier . the orientation will be more accurate and the cutting presicion will be higher.
主要技术参数：
| 型号 | GHLQ-4L Middle | GHLQ-4L Big |
内工作台尺寸（lnside worktable size) | W1320×L2290mm | W1720×L2290mm |
外工作台尺寸(Outside worktable size) | W1200×L2290mm | W2000×L2290mm |
切绵厚度(Cutting thickness) | 3~mm | 3~mm |
切割高度（Cutting height) | H800/1200mm | H800/1200mm |
刀带长度(Blade length) | L7320mm/L8100mm | L8100mm/L8900mm |
总功率(Total power) | 1.74kw | 1.74kw |
| 机器重量(Machine weight) | 1300kg | 1500kg |
机器外形尺寸（长×宽×高） (Machine external size) | L4500×W4000×H2550mm | L4500×W4800×H2550mm
|
注：以上数据和参数仅供参考，实际技术数据以出厂产品为准。图片均为实际拍摄！
